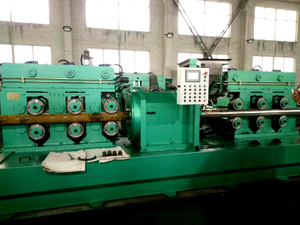

Automatic Round Bar Rod Tube Peeling Machine

Bar peeling machine is part of a bright bar production line, comprising a bar peeling machine, two roll precision straightening/polishing machine and pre-straightening machine, and chamfering and centerless grinding machine. This production line processes hot-rolled, precision forged and heat-treated black bars into bright ones with bright surface and high performance.

Product Description

Automatic Round Bar Rod Tube Peeling Machine:


Because the bar peeling machine can continuously process alloy gloss steel and has requirements of high diameter and surface roughness tolerance, so it is very popular in today's industry. The bar peeling machine can complete the stripping of steel, and it has become the necessary equipment used by steel manufacturers.


When steel blanks are formed from a forging or hot-rolling process, they generally have surface imperfections like microcracks or discontinuous "skins" that are formed during the cooling process. Metal oxide layers can also build up over time. These imperfections have to be removed before the blank can be formed into a sufficient raw material for further processing.


High-speed centerless lathe turning machines remove scale, cracks, seams, deformations, decarborized layers, and other imperfections resulting from hot rolling or other processes used for producing bar or tube.


As a professional bar peeling machine manufacturer, Baote providing a high-quality round bar peeling machine - a high-efficiency centerless lathe which is specialized in rough processing and finishing of the surface of slender shaft. Not only quickly remove surface hardened layer, cracks, and other defects, but also can get high precision.


Technical parameters of bar (tube) peeling machine

Unit type BP-40 BP-80 BP-100 BP-150 BP-250
Main power source             AC 380V 50HZ AC 380V 50HZ  AC 380V 50HZ AC 380V 50HZ AC 380V 50HZ
Control source             AC 220V 50HZ AC 220V 50HZ AC 220V 50HZ AC 220V 50HZ AC 220V 50HZ
System control power DC24V DC24V DC24V DC24V DC24V
Hardness             hot rolled material ≤HB310 hot rolled material ≤HB310 hot rolled material ≤HB310 hot rolled material ≤HB310 hot rolled material ≤HB310
Peeling length             ≥2.2m ≥2.5m ≥2.5m ≥3.2m ≥3.5m
Peeling diameter range size (raw material)             ∮11-41mm ∮21-85mm ∮31-102mm ∮71-155mm ∮92-255mm
Peeling diameter range size (finished product)  ∮8-40mm ∮20-80mm ∮30-100mm ∮70-150mm ∮90-250mm
Yield Strength             1200 MPa 1200 MPa 1200 MPa 1200 MPa 1200 MPa
The knife dish form four knife four knife four knife four knife four knife
Blade adjustment mode Adjust the cutter online without stopping  Adjust the cutter online without stopping  Adjust the cutter online without stopping  Adjust the cutter online without stopping  Adjust the cutter online without stopping
Speed of mainshaft             300-2000r/min 300-1000r/min 300-1000r/min 200-450r/min 70-260r/min
Peeling depth(diameter) 0.5-1.5mm 0.6-2mm 0.6-2mm 1-5mm 1-5mm
Feeding speed             0.5-12m/ min 0.5-10m/ min 0.5-8m/ min 0.5-5m/ min 0.5-4m/min
Diameter tolerance h9-h11 h9-h11 h9-h11 h9-h11 h9-h11
Surface roughness             Ra1.6-3.2 Ra1.6-3.2 Ra1.6-3.2 Ra1.6-3.2 Ra3.2-12.5
Out of  roundness             ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05
Precision              ≤0.05 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Straightness (raw material) ≦3‰ ≤3‰ ≤3‰ ≤3‰ ≤3‰
Straightness (finished product) ≦3‰ ≤3‰ ≤3‰ ≤3‰ ≤3‰
Loading frame and unloading frame's length (standard configuration)    6m 6m 6m 6m 6m
Total power             58KW 76KW 76KW 122KW 119KW
Main motor power             37KW 55KW 55KW 90KW 75KW
Feed motor power             3.0KW*2 3.0KW*2 3.0KW*2 3.0KW*3 3.0KW*6
Pull out motor power 3.0KW*3 3.0KW*3 3.0KW*3 3.0KW*3 3.0KW*4
Hydraulic pressure station motor power             3.0KW*1 3.0KW*1 3.0KW*1 11KW*1 11KW*1
chip removal device motor pwer             0.75KW*1 0.75KW*1 0.75KW*1 0.75KW*1 0.75KW*1
Motor power of the shrink knife             0.4KW*1 0.4KW*1 0.4KW*1 0.4KW*1 0.4KW*1
Motor power of upper and lower roller table 1.1KW*1 1.1KW*1 1.1KW*1 1.1KW*1 1.1KW*1
Weight 10T 12T 12T 25T 60T
boundary dimension  (m)   16.5*3.2*1.9 16.5*4*1.9 16.5*4*1.9 18*4*2.1 20*4.5*2.4


PACKING-AND-SHIPPING

Advantages

1. High Quality

With reference to German technology, on this basis, we update and improve our technology, compared with foreign equipment, our equipment has high quality, high efficiency, simple operation, convenient maintenance, low failure rate, low energy consumption and reasonable price.


2. Enough experience and High technology

We start from the processing industry, using self-made equipment to undertake the national bar material processing business. This is also an important basis in which we can continuously improve our equipment technology. Because we have processed different materials and specifications bar materials, we have more practical experience to suggest. Therefore, we all have better and more accurate judgment and guidance on the possible faults and operational errors of the equipment.


3. on-line tool adjustment without stopping

Compared with similar products in China, our peeling machine can make on-line tool adjustment without stopping. And we equipped with good quality accessories.

After-sale Service Services

1. Free quality guarantee period for 12 months

2. Free long-term technical support

3. Free train for buyer's operator in our factory

4. Fast response service within 24 hours

5. Our engineers can offer overseas services, including guiding installation, commissioning, training, etc.
