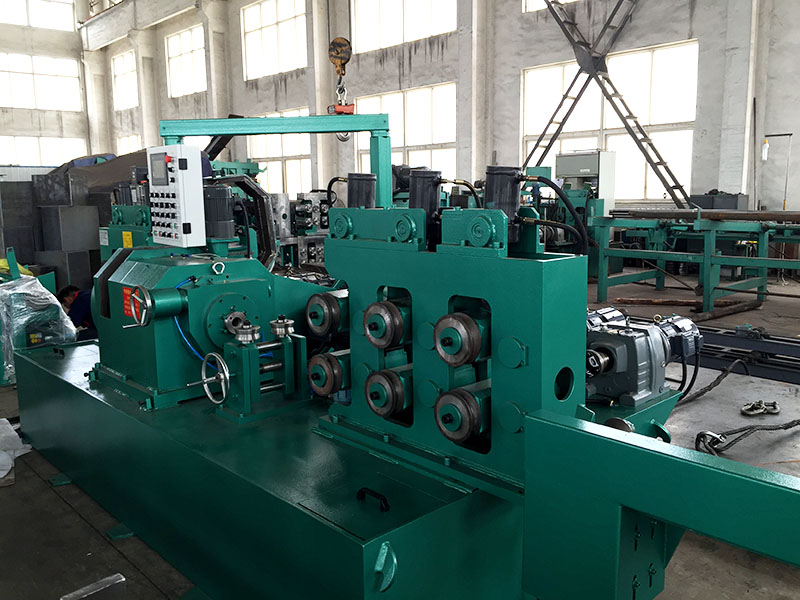

High Precision Bar To Bar Peeling Machine

Precision bar to bar peeling machines is used for the production of bright steel intolerances h9 / h11 in the diameter range from 10 to 250 mm. Peeling machine removes the decarburized layer, scratches, or defective hardened layer on the surface of the hot-rolled round material.

Product Description

High Precision Bar To Bar Peeling Machine:


The middle of the Bar Peeling Machine is empty and there is a knife around the plate. We will process materials here. Fix, and then adjust the tilt angle of the cutter, the cutter begins to spin at high speed. During processing, the bar itself doesn't rotate. The cutter head drives the tools rotating at high speed to pell the surface of the bar. At the same time, after peeling, the bar keeps walking straight ahead. The machine suits for processing the bars and wire rods.


A steel peeling machine removes the decarburized layer, scratches, or defective hardened layer on the surface of the cold/hot rolled round material. A continuous feed system of bars loses no time in loading and unloading. Therefore, it is suitable for mass production.


Technical parameters of bar (tube) peeling machine

Unit type BP-40 BP-80 BP-100 BP-150 BP-250
Main power source             AC 380V 50HZ AC 380V 50HZ  AC 380V 50HZ AC 380V 50HZ AC 380V 50HZ
Control source             AC 220V 50HZ AC 220V 50HZ AC 220V 50HZ AC 220V 50HZ AC 220V 50HZ
System control power DC24V DC24V DC24V DC24V DC24V
Hardness             hot rolled material ≤HB310 hot rolled material ≤HB310 hot rolled material ≤HB310 hot rolled material ≤HB310 hot rolled material ≤HB310
Peeling length             ≥2.2m ≥2.5m ≥2.5m ≥3.2m ≥3.5m
Peeling diameter range size (raw material)             ∮11-41mm ∮21-85mm ∮31-102mm ∮71-155mm ∮92-255mm
Peeling diameter range size (finished product)  ∮8-40mm ∮20-80mm ∮30-100mm ∮70-150mm ∮90-250mm
Yield Strength             1200 MPa 1200 MPa 1200 MPa 1200 MPa 1200 MPa
The knife dish form four knife four knife four knife four knife four knife
Blade adjustment mode Adjust the cutter online without stopping  Adjust the cutter online without stopping  Adjust the cutter online without stopping  Adjust the cutter online without stopping  Adjust the cutter online without stopping
Speed of mainshaft             300-2000r/min 300-1000r/min 300-1000r/min 200-450r/min 70-260r/min
Peeling depth(diameter) 0.5-1.5mm 0.6-2mm 0.6-2mm 1-5mm 1-5mm
Feeding speed             0.5-12m/ min 0.5-10m/ min 0.5-8m/ min 0.5-5m/ min 0.5-4m/min
Diameter tolerance h9-h11 h9-h11 h9-h11 h9-h11 h9-h11
Surface roughness             Ra1.6-3.2 Ra1.6-3.2 Ra1.6-3.2 Ra1.6-3.2 Ra3.2-12.5
Out of  roundness             ≤0.05 ≤0.05 ≤0.05 ≤0.05 ≤0.05
Precision              ≤0.05 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Straightness (raw material) ≦3‰ ≤3‰ ≤3‰ ≤3‰ ≤3‰
Straightness (finished product) ≦3‰ ≤3‰ ≤3‰ ≤3‰ ≤3‰
Loading frame and unloading frame's length (standard configuration)    6m 6m 6m 6m 6m
Total power             58KW 76KW 76KW 122KW 119KW
Main motor power             37KW 55KW 55KW 90KW 75KW
Feed motor power             3.0KW*2 3.0KW*2 3.0KW*2 3.0KW*3 3.0KW*6
Pull out motor power 3.0KW*3 3.0KW*3 3.0KW*3 3.0KW*3 3.0KW*4
Hydraulic pressure station motor power             3.0KW*1 3.0KW*1 3.0KW*1 11KW*1 11KW*1
chip removal device motor pwer             0.75KW*1 0.75KW*1 0.75KW*1 0.75KW*1 0.75KW*1
Motor power of the shrink knife             0.4KW*1 0.4KW*1 0.4KW*1 0.4KW*1 0.4KW*1
Motor power of upper and lower roller table 1.1KW*1 1.1KW*1 1.1KW*1 1.1KW*1 1.1KW*1
Weight 10T 12T 12T 25T 60T
boundary dimension  (m)   16.5*3.2*1.9 16.5*4*1.9 16.5*4*1.9 18*4*2.1 20*4.5*2.4


PACKING-AND-SHIPPING

Advantages

1. High Quality

With reference to German technology, on this basis, we update and improve our technology, compared with foreign equipment, our equipment has high quality, high efficiency, simple operation, convenient maintenance, low failure rate, low energy consumption and reasonable price.


2. Enough experience and High technology

We start from the processing industry, using self-made equipment to undertake the national bar material processing business. This is also an important basis in which we can continuously improve our equipment technology. Because we have processed different materials and specifications bar materials, we have more practical experience to suggest. Therefore, we all have better and more accurate judgment and guidance on the possible faults and operational errors of the equipment.


3. on-line tool adjustment without stopping

Compared with similar products in China, our peeling machine can make on-line tool adjustment without stopping. And we equipped with good quality accessories.

After-sale Service Services

1. Free quality guarantee period for 12 months

2. Free long-term technical support

3. Free train for buyer's operator in our factory

4. Fast response service within 24 hours

5. Our engineers can offer overseas services, including guiding installation, commissioning, training, etc.
