Popular Wire Coil To Bar Combined Drawing Machine
You are here: Home » Products » Combined Drawing Machine » Popular Wire Coil To Bar Combined Drawing Machine
Share to:

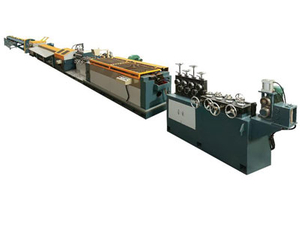

Popular Wire Coil To Bar Combined Drawing Machine

The popular wire coil to bar combined drawing machine is the most efficient drawing method for small and medium-size profiles. Thanks to the unique BAOTE chain track drawing pulling unit, speeds up to 180 m/min for ferrous materials (and 400 m/min for non-ferrous materials) are achieved, approximately 50% faster than any other system, which results in significantly higher productivity. Even with high yield strength materials, the chain track system shows many benefits with respect to traditional cam bench pulling systems. BAOTE popular wire coil to bar combined drawing machine draws 3 bars simultaneously for the highest performance and is installed in-line with straightening, chamfering, cut to length, and bundling/packaging systems.

  • Baote

Product Description

BAOTE popularwire coil to bar combined drawing machine provides coil opener to pull out the large diameter coil end easily, and the wire crooked part can be straightened through straightening rollers. BAOTE popular wire coil to bar combined drawing machine has always taken care of the product in all its phases, operating all-round: from the design to the construction and assembly, up to the installation, and the final start up on site of machines for drawing and peeling ferrous and non-ferrous materials. Clients can avail this bar combined drawing machine at industry leading prices from us.


The Advantages of Popular Wire Coil To Bar Combined Drawing Machine


1. The high degree of mechanization and automation, less production personnel required, short production cycle, and high production efficiency.

2. The product quality is good, the surface roughness value of Ra0.4-1.6 and straightness of 0.3-0.8.

3. Lightweight, compact structure and small floor space.

4. The combined drawing machine is provided with permanent long-life carbide or high-speed steel straightening business.

5. The combined drawing machine is provided with a double-feed roller for accurate cutting and practically no load on the electric motor.

6. All the gears and feed rollers are made from special steel and duly hardened bearing is heavy duty and the machine is fully covered.


The Applications of Popular Wire Coil To Bar Combined Drawing Machine


● Steel Wire Manufacturing

● Steel Foundry Industries

● Cast Iron Foundry

● Tire Wire/Bead Wire

● Steel Wire Ropes Manufacturer

● Automotive Components

● Aluminum Descaling

● Cold Press Forging Steel

● ConcreteArticles

● Draw Plating


Combined drawing machine:

The Combined drawing machine is a high-precision, high-efficiency, stable performance metal rod pipe professional processing equipment. It draws wire rods once and shapes them, and then special equipment for precision silver bright bars is produced after straightening and cutting. It also has precise geometry, good surface roughness (also called smoothness), high dimensional accuracy, and improved production efficiency, Reduce labor and site costs and other advantages.


The unit has the following functions: unwinding, initial straightening, drawing, fine straightening, length cutting, feeding, calendering, straightening, and product collection. Multi-step process in one of the fully automated processing equipment, and can process a variety of special-shaped materials, such as round, hexagonal, square, flat square and many other profiles.


Our production of LBJZ-2, LBJZ-4, LBJZ-6, LBJZ-10 combine drawing machine through to bending of the round bar, hexagonal bar, square bar of non-ferrous metal and ferrous metal material, repeated bending, stretching to reach the straightening effect. Use the polishing machine or vertical type two roller machine polishing equipment pressure light to achieve the bright appearance of rod material surface.

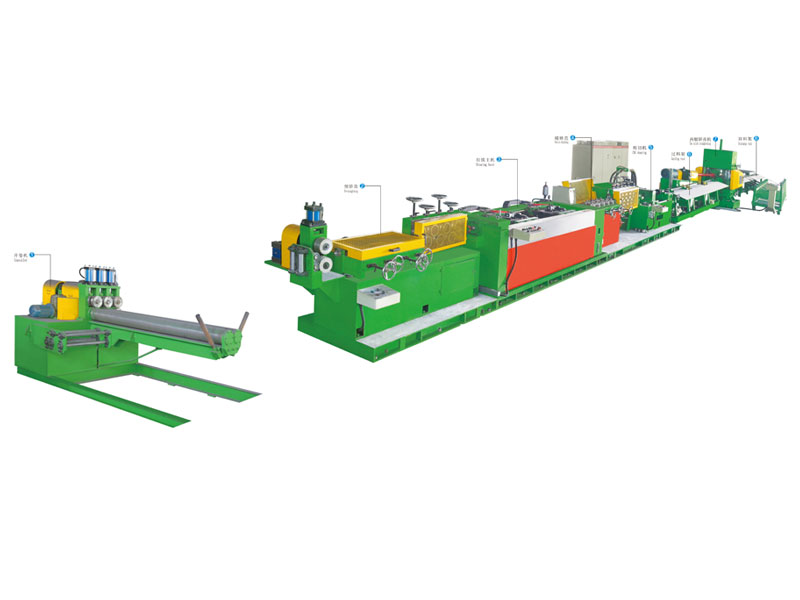

 LBJZ-2, LBJZ-4, LBJZ-6 combined with drawing machine includes the discharge frame, rough straightening machine, drawing machine, precise straightening machine, CNC hydraulic shearing machine, conduit box, polishing machine, chamfering machine, rack. LBJZ-10 combined with drawing machine consists of uncoiler, rough straightening machine, drawing machine, precise straightening machine, shearing machine, and machine material frame, two vertical roller machine, rack.


Combined drawing machine processing range:

Raw material: coil or rod

Material: black metal (free cutting iron, pure iron, stainless steel, bearing steel, high speed steel, alloy steel, special steel)

Non-ferrous metals (copper, copper alloys, aluminium and aluminium alloys)

Finished product specifications: round 3-40, square 3-24, hexagonal 3-26, and special shape (need drawing confirmation)


The characteristics of the machine:

1, automatic production: only in the unwinding and rewinding need to operate, reduce the labor and improving the production efficiency, a whole line machine only one guard and production efficiency reached 60 meters per minute;

2, the performance is stable, the working time can be up to 16 hours a day of uninterrupted work

3, high quality of finished product of processing: surface rough degree of Ra0.4-1.6 and straightness of 0.3-0.8


Technical parameters of combined drawing machine

Mode LBZJ-2A(0) LBZJ-4A(1) LBZJ-6A(1.5) LBZJ-8A(2) LBJZ-10A(2.5) LBJZ-15A(3) LBJZ-30C
Rated drawing force (KN) 20 40 60 80 100 150 300
Drawing speed (m/min) electrodeless 60 60 50 50 45 40 25
polishing speed (m/min) 80 80 80 80 80 80 80
spec. of product (round) (mm) Φ3-Φ8 Φ4-Φ12 Φ6-Φ16 Φ8-Φ22 Φ10-Φ25 Φ15-Φ30 Φ20-Φ40
spec. of product (square) (mm) S3-S6 S4-S10 S6-S12 S8-S16 S10-S19 S15-S24
spec. of product (hexagonal) (mm) H3-H7 H4-H11 H6~13 H8-H17 H10-H22 H15-H26
length of product (m) 2-6 2-6 2-6 2-6 2-6 2-6 2-6
surface roughness (rod) ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8 ≤0.8
straightness accuracy (rod)(mm/m) ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
total motor power (kw) 80 93/97 132 162 181 240 480
main motor power (kw) 45 55 75 90 90 132 160*2
weight (t) 18 21 29 36 42 45 65
dimension (m)(L*W*H) 24*2.3*1.3 26*2.3*1.3 29*2.4*1.3 31*2.4*1.4 40*2.5*1.8 43*2.3*1.8 63*9.5*2.6
Fine   straightening configuration polishing machine polishing machine /Vertical two-roll machine (TR10) Vertical two-roll machine (TR15) Vertical two-roll machine (TR20) Vertical two-roll machine (TR20 or TR30) Vertical two-roll machine (TR30) Vertical two-roll machine (TR40)
