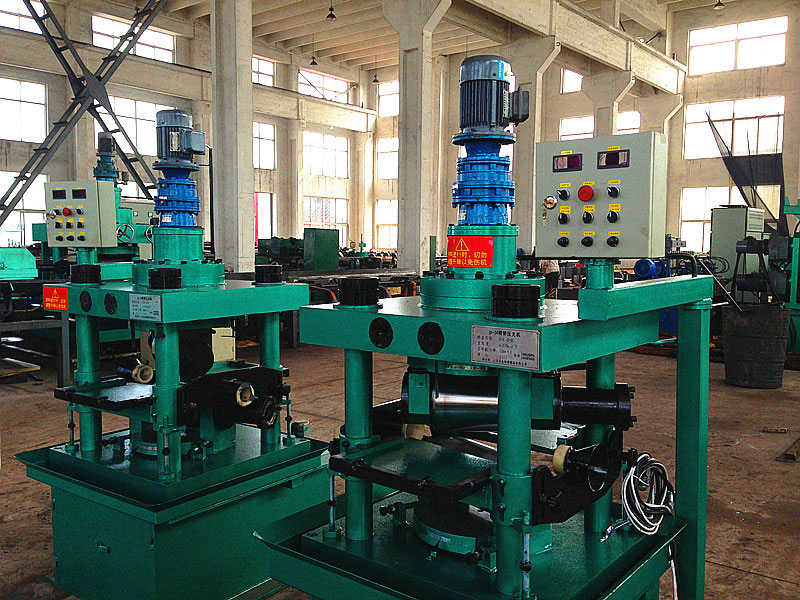

Wire Straightening Machine

The wire straightening machines are assigned for continuous straightening of wire from wire coil, which is afterward measured and cut to the desired length. BAOTE wire straightening machine is designed as stand-alone lines for the high-speed production of straightened and cut wire. These machines are robustly designed and are offered with a range of different payoff options (DIN or Motorised Rotating Platforms) to suit the presentation of the wire. The wire is driven by a series of feed wheels through the dual spinner assemblies and is cut to length in a high speed flying shear. The shear is designed to give a flush, square end cut at maximum operating speed. Gearing between the feed and spinner drives ensures a constant straightening angle under all conditions to provide optimal straightness of the finished wires.

Product Description

Wire Straightening Machine:

BAOTE is an experienced wire straightening machine manufacturer and supplier that specializes in industrial wire straightening machine and automatic wire straightening. Our wire straightening machine's cut length is programmed directly into the PLC and measured using an Encoder measurement device which gives precise actual length finished components. Length is digitally programmed for very quick length setting and changeovers.


The principle of wire straightening machine

The wire is uncoiled – drawn from the wire coil by wire shift drive. The wire proceeds step by step through the inlet draw, leading and first straightening rolls, straightening unit, compensator of wire length, cutting – shears to machine metage of desired wire length. Afterward, the wire is cut and is falling to the reservoir. Control of wire shift drive and of straightening unit provides for the variability of simple parameter adjustment of wire straightening, and that enables wire with various quality, rigidity, and surface treatment to be straightened. ( non- rigid, firm, spring, rustless wire).


Main features of wire straightening machine

1. Adopt microcomputer control, automatic straightening, length, cutting together.

2.Multi batch input both length and quantity, computer storage information.

3. Easily operated, no matter workers have experience or not.

4.Hydraulic and sizing, cutting, most accurate and silent

5. Occupies a small area, easy installation, and operates agility.

6. It runs smoothly, low failure rate and convenient maintenance, cheap components.


Parameter of wire straightening machine

1. Applicable wire diameter:1.0-6.0mm

2. Length tolerance: ±0.2mm

3. Straightening speed:18 m/min

4. Motor power: 0.75 kW *2 sets

 5. Rated voltage: 380V

 6. Size :1800 * 690* 760 mm (length * width * height)

7. Weight : 250kg

8. Material requirements: coiling wire

9. Mechanical features: Chinese-English menu, super LCD, easy to operate.

10. Set the number of times, accumulate quantity and memory of specifications.

11. The cutting length is adjustable and is controlled by the PLC program.



Technical parameters of bar (tube) straightening machine

Unit typeJP40JP60JP80JP100JP150
Main power sourceAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZAC 380V 50HZ
Control sourceAC 220V 50HZAC 220V 50HZAC 220V 50HZAC 220V 50HZAC 220V 50HZ
System control powerDC24VDC24VDC24VDC24VDC24V
Raw material requirementspeeling steel cold, drawn steelpeeling steel cold, drawn steelpeeling steel cold, drawn steelpeeling steel cold,  drawn steelpeeling steel cold, drawn steel
Straightening length≥1m≥2m≥2m≥2m≥2.5m
Straightening diameter range size∮8-40∮18-60∮20-80∮30-100∮70-150
Hardness of steel bar≤HB300≤HB300≤HB300≤HB300300BHN
Yield Strength1200 MPa1200 MPa1200 MPa1200 MPa1200 MPa
Straightening speed1-25m/min1-25m/min1-18m/ min1-18m/ min1-10m/ min
Straightening roll speed1-140rpm1-140rpm1-63rpm1-63rpm1-63rpm
Surface roughnessRa1.6-0.8Ra1.6-0.8Ra1.6-0.8Ra1.6-0.8Ra1.6-0.8


Advantages

1. High Quality

With reference to German technology, on this basis, we update and improve our technology, compared with foreign equipment, our equipment has high quality, high efficiency, simple operation, convenient maintenance, low failure rate, low energy consumption and reasonable price.


2. Enough experience and High technology

We start from the processing industry, using self-made equipment to undertake the national bar material processing business. This is also an important basis in which we can continuously improve our equipment technology. Because we have processed different materials and specifications bar materials, we have more practical experience to suggest. Therefore, we all have better and more accurate judgment and guidance on the possible faults and operational errors of the equipment.


3. on-line tool adjustment without stopping

Compared with similar products in China, our peeling machine can make on-line tool adjustment without stopping. And we equipped with good quality accessories.
